MARVEL KITCHEN VENTILATION HOODS

Introducing the new range of Marvel-Curtain technology to improve the capture containment efficiency.

Kitchen Ventilation Hoods

Introducing the new range of Marvel-Curtain technology to improve the capture and containment efficiency.

Introduction

Marvel-Curtain Technology hoods are designed and manufactured to improve the removal of cooking fumes and heat from the commercial kitchen environment. We manufacture the hoods to comply with international kitchen ventilation standard DW172 Marvel-Curtain Technology hoods have been designed and manufactured specially to improve the removal of cooking fumes and heat from the commercial kitchen environment. We manufacture the hoods to comply with international kitchen ventilation standard DW172 .

Our hoods feature

High-efficiency UL-listed filter for the filtration of grease and other particles.  Marvel-curtain technology increases overall efficiency, minimizes smoke spillage, and reduces make-up and exhaust airflow rates.  Exhaust and make-up air damper, front face perforation for the constant supply of clean, fresh air directly into the workplace for a comfortable environment for the chef.  Made of 304 stainless-steel 1.2mm, fully welded seamless construction to maintain hygiene and high quality finish.  Energy-saving down-spot and long panel LED light with removable fitting, safe and easy maintenance access.  To prevent internal condensation use high-density closed-cell insulation  Composite wrap exhaust plenum to prevent leakages.  Oil tray at the lower end of the hood fitted with a removable handle.

Construction

Marvel Ventilation hoods are manufactured by using CNC laser technology and press-brake tools for the highest quality finish and accuracy.

All types of our hoods are manufactured and made to order in our factory in Raiwind city Road Lahore, Pakistan.

The hoods are manufactured from 1.2mm 304-grade stainless steel brush finish. Accurate bending, welding, and high-tensile bolts are used for increased strength and structural rigidity.

The hoods are supplied with low-noise high-efficiency Marvel curtain technology fan to achieve the optimum level of containment efficiency.

Lighting is included as standard. Our unique, purpose-built lighting system uses:

• Energy-saving down-spot lights
• Long LED panel lights
• Cool white 4000K
• Warm yellow 3000K
• More than 500 lux at the workspace

Standard Kitchen Hood Technical Data

Marvel-Curtain Technology hoods have been designed and manufactured specially to improve the removal of cooking fumes and heat from the commercial kitchen environment.

The hoods comply with international kitchen ventilation standard DW172.

Hood Model

• M-HE-CA: Standard wall-mounted exhaust hood with air supply
• M-HEI-CA: Standard island configuration exhaust hood with air supply

Standard Specifications

UV Integrated Kitchen Hood Technical Data

Marvel Commercial Kitchen Hoods integrated with UV-C & Marvel-Curtain Controlled Capture Air Curtain technology use powerful UV-C rays to create ozone behind the hood filters.

The generated ozone decomposes and oxidizes organic fat particulates exhausted through the hood, resulting in safer, cleaner, more efficient hood operation.

The hoods utilize a compact, multi-scattered-lamp cassette, located outside the direct air stream for maximum ozone effect and cassette life.

Hood Model

• M-HE-UVCA: UV Integrated wall-mounted exhaust hood with air supply
• M-HEI-UVCA: UV Integrated Island configuration exhaust hood with air supply

Standard Specifications

Water-Mist Kitchen Hood Technical Data

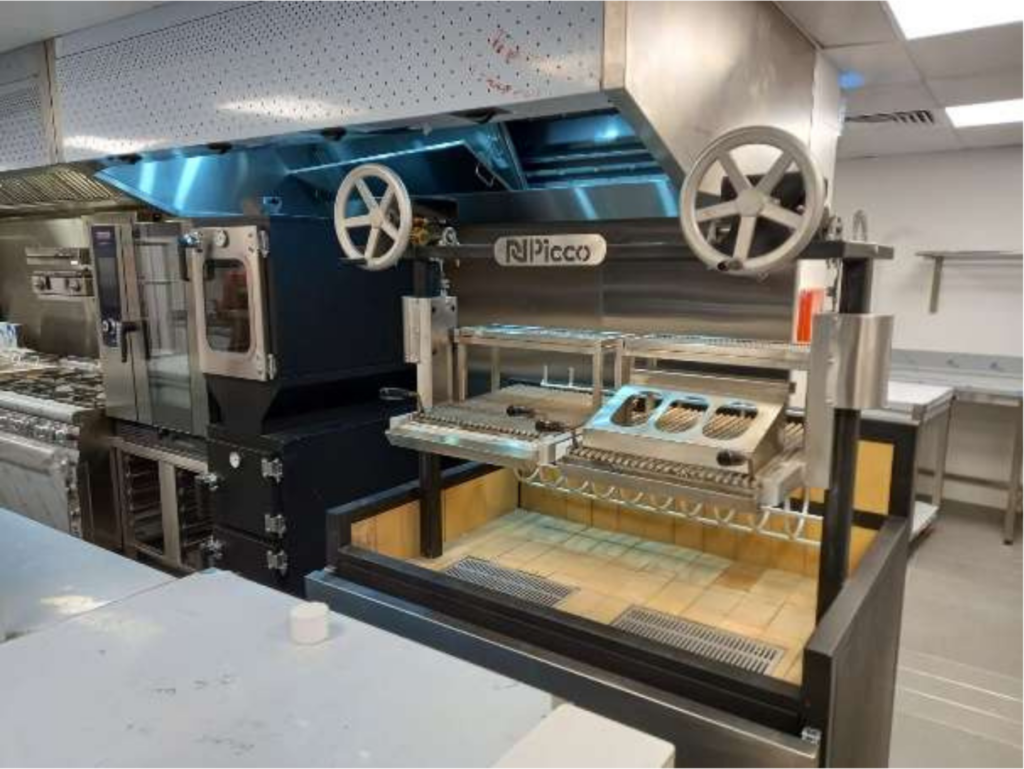

The water-mist exhaust hood is suitable for all kinds of heavy cooking operations. However, it is designed to be used over solid fuel-burning equipment such as:

• Charcoal grills
• Char-broilers
• Wood and coal fire ovens
• Live flame cooking equipment

It provides a continuous water spray when activated during cooking operation.

The water mist spray aims to:

• Reduce the temperature of the exhaust air
• Remove dangerous sparks
• Wash down ashes and soot from grease-laden air

Hood Model

• M-CM-CA: Water-mist Hood with Cold Mist
• M-CMWH-CA: Water-mist Hood with Cold Mist and Hot Auto-Wash cycle

Standard Specifications

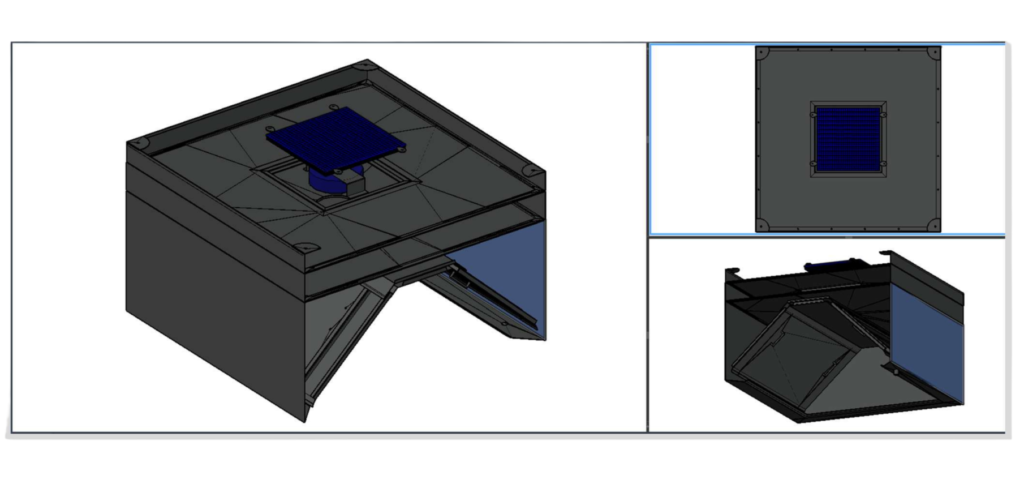

Marvel Condensate Hood Technical Data

Marvel-CD Hood is specially designed for commercial kitchens and is suitable to extract:

• Steam
• Water vapour generated by dishwashers during pot washing

It is suitable where non-grease extraction is required.

Hood Model

• Marvel-CD: Commercial kitchen Condensate hood

Standard Specifications

• Manufactured of 1.2mm thick 304 stainless steel sheet
• Polished stainless steel
• Welded design
• Modular construction simplifies design and installation

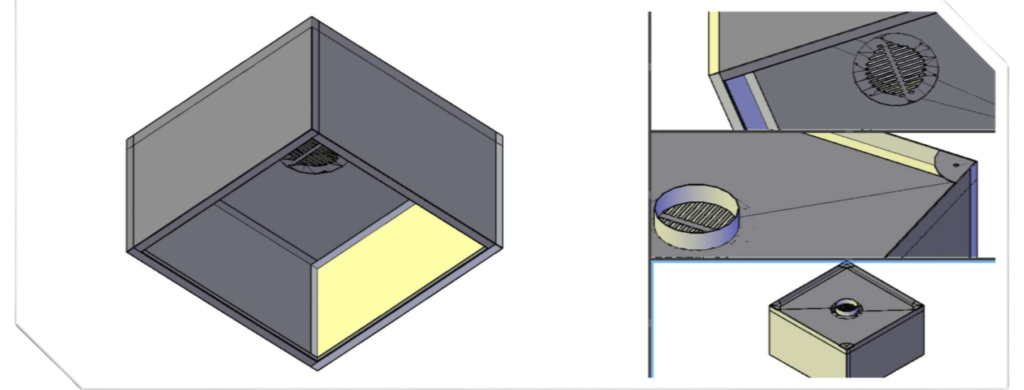

Marvel Self Condensate Hood Technical Data

Marvel-SCD Hood is specially designed for commercial kitchens and is suitable to extract steam and water vapour generated by:

• Dishwashers
• Ovens

It cools the vapour into liquid water during the pot washing and combination process.

It is ventless, meaning it does not require connection to exhaust air ductwork.

It is suitable where non-grease extraction is required.

This also makes it highly flexible to place in kitchens where extract provision is not available.

Hood Model

• Marvel-SCD: Commercial kitchen Self-Condensate hood

Standard Specifications

• Manufactured of 1.0mm thick 304 stainless steel sheet
• Polished stainless steel
• Welded design
• Modular construction simplifies design and installation
• Built-in exhaust fan for air circulation
• Suitable for combi ovens and dishwashers

Marvel Low Proximity Backshelf Hood Technical Data

Low Proximity Backshelf Hoods are designed to efficiently capture and remove:

• Fumes
• Smoke
• Airborne contaminants

They capture these directly at the source.

Built with safety and performance in mind, they ensure a consistently clean and healthy working environment.

They are suitable for:

• Laboratories
• Industrial facilities
• Commercial kitchens

These hoods deliver superior airflow while keeping energy consumption low.

They are crafted from durable, high-quality materials and are easy to:

• Install
• Operate
• Maintain

Innovative design features allow them to perform optimally even in compact spaces, providing maximum efficiency where it matters most.

Hood Model

• Marvel-LPBS: Commercial kitchen Low Proximity Backshelf hood

Standard Specifications

• Manufactured of 1.0mm thick 304 stainless steel
• Polished stainless steel
• Welded design
• Modular construction simplifies design and installation
• Suitable for:
  • Low-intensity cooking lines
  • Deep fryers
  • Combination ovens
  • Induction cookers

Marvel Ventless Kitchen Hood Technical Data

MARVEL Ventless Exhaust Hoods allow you to use almost any commercial electric cooking equipment without the need for ventilation.

The hood comes with a built-in air filtration system.

Ventless hoods are the one which vents air to the outside, a ductless range hood consists of a fan (or blower, motor) with a carbon filter that absorbs:

• Grease particles
• Heat
• Smells
• Smoke

The system purifies the exhaust air and then recirculates it back into the kitchen.

This hood system does not compromise on safety and has an interlock feature to ensure that the equipment under the hood is also turned on.

A colour-coded lighted alert system lets you know that it is running safely and efficiently.

Fire suppression is not included; however, it comes ready for field installation of an Ansul R102 wet chemical system.

Hood Model

• M-VLH: Stand-alone / Marvel Ventless exhaust hood

Standard Specifications

• Self-contained hood filter system with fire suppression (optional) and 4-stage air filtration
• Fills the need for a traditional Type 1 hood
• Accommodates multiple pieces of electric cooking equipment 2000 mm wide (total)
• Sound level during operation: 68 dBA average
• Pest solution for places where hood installation is cost-prohibitive or isn’t practical
• Power supply: 220/240V
