MARVEL AIR FILTERS Metallic Pre-Filters

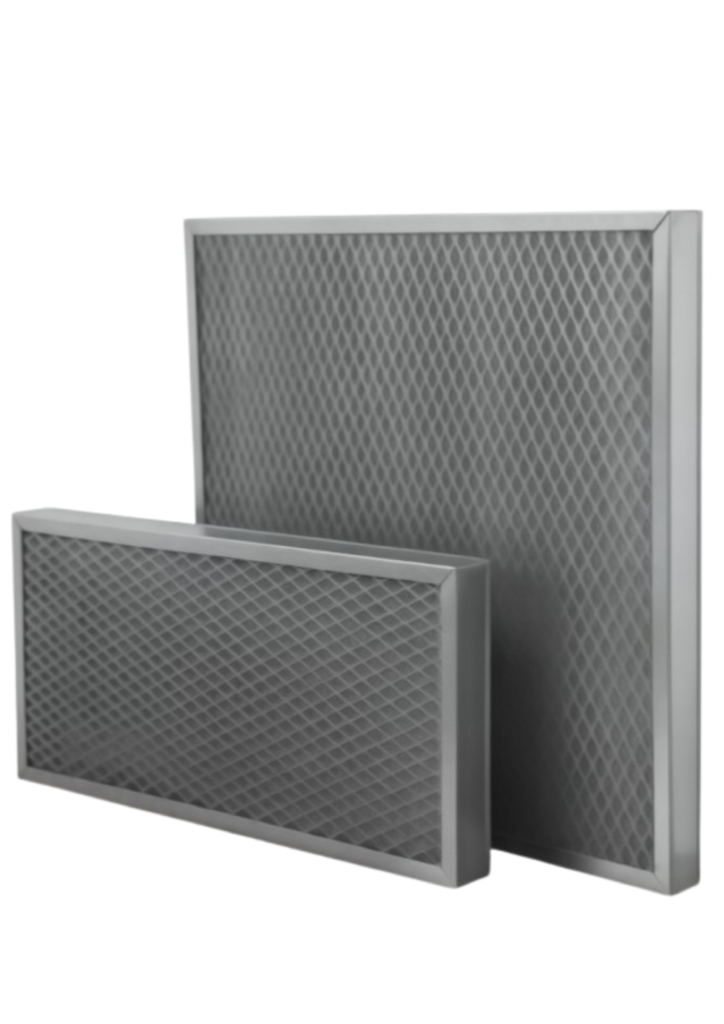

Washable Metallic Pre-Filters – MVMTF
Parameter | Detail |
Type of Filter | Metallic Flat Type Panel Filter |
Filter Grade (EN 779) | G2 |
Filter Grade (ASHRAE 52.2) | MERV 4 |
Filter Media | Metallic Mesh |
Media Support | Expanded metal media support on both sides |
Frame | GI, Stainless Steel & Aluminum |
Filter Depth | ½”, 1″, 2″ & 4″ |
Max. Temperature | 120°C (100% Max. Humidity) |
Final Pressure Drop | 1.00″ wg |
Flammability | UL 900 / ULC S III Classified |
Mounting Options | Front and side access frames and housing available |
Features & Benefits:
- Multiple layers of pleated metal wire mesh forming a compact dirt-catching maze
- Available in galvanized steel, stainless steel, and aluminum construction
- Sturdy galvanized steel / stainless steel / aluminum frame
- Multi-layered media held by expanded metal mesh grid on both inlet and outlet sides
- Permanent washable filters suited for heavy-duty industrial and commercial HVAC
- Excellent dust-holding capacity, performs well in high-moisture conditions
- Reduces grease deposits on kitchen exhaust ductwork — cuts duct-cleaning frequency, fire risk, and prolongs fan/motor life
- Can serve as pre-filters ahead of costlier high-efficiency HVAC filters
- Washable with detergent/warm water or compressed air
- Available in all-stainless-steel construction
- Custom sizes available
- Optional pre-drilled weeping holes for drainage/oil reclaim
Applications: Industrial, Commercial, Hospital, Biomedical, Residential, Universities, Laboratories, Pharmaceutical, Restaurant, Food Processing Unit, Biotechnology
Technical Parameters (Model Reference | Dimensions in inches | Grade | Airflow CFM/CMH | Resistance In. WG):
Model | Width | Height | Depth | Grade | CFM@350fpm | CFM@500fpm | CMH@1.78m/s | CMH@2.54m/s | Resist.@1.78m/s | Resist.@2.54m/s |
MVMTF-24x24x1-G2 | 23.30 | 23.30 | 0.86 | G2/MERV4 | 1400 | 2000 | 2380 | 3400 | 0.15 | 0.22 |
MVMTF-12x24x1-G2 | 11.30 | 23.30 | 0.86 | G2/MERV4 | 700 | 1000 | 1190 | 1700 | 0.15 | 0.22 |
MVMTF-24x24x2-G2 | 23.30 | 23.30 | 1.88 | G2/MERV4 | 1400 | 2000 | 2380 | 3400 | 0.24 | 0.35 |
MVMTF-12x24x2-G2 | 11.30 | 23.30 | 1.88 | G2/MERV4 | 700 | 1000 | 1190 | 1700 | 0.24 | 0.35 |
MVMTF-24x24x4-G2 | 23.30 | 23.30 | 3.85 | G2/MERV4 | 1400 | 2000 | 2380 | 3400 | 0.40 | 0.58 |
MVMTF-12x24x4-G2 | 11.30 | 23.30 | 3.85 | G2/MERV4 | 700 | 1000 | 1190 | 1700 | 0.40 | 0.58 |
Model Code: MVMTF-24x24x1-G2 → MV: Marvel Ventilation | MTF: Metallic Filter | 24x24x1: W×H×D (inch) | G2: Grade
- DISPOSABLE PLEATED FILTERS

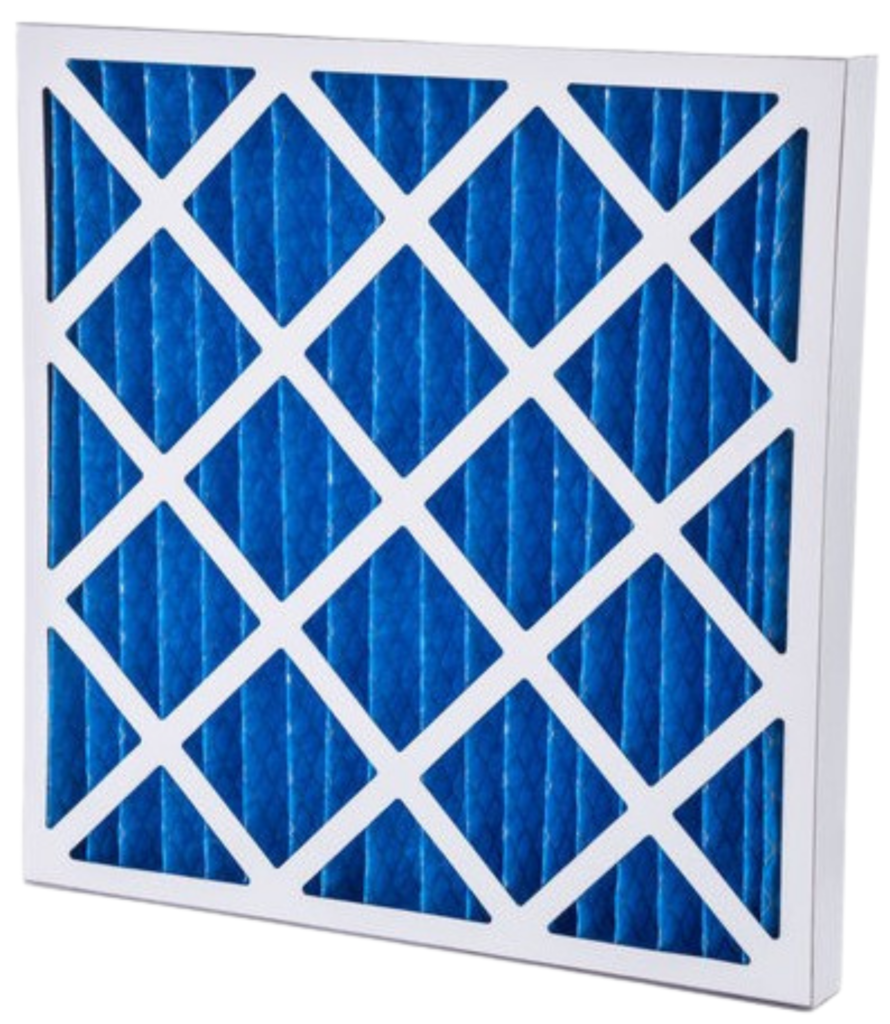

Disposable Pleated Filters – MVDPF
Parameter | Detail |
Type of Filter | Disposable Pleated Standard Capacity Panel Filter |
Filter Grade (EN 779) | G4 |
Filter Grade (ASHRAE 52.2) | MERV 8 |
Filter Media | Non-Woven cotton/Polyester blended type |
Media Support | Expanded metal support grid on air exit side |
Frame | Wet Strength Beverage Board / Metal Frame |
Filter Depth | 1″, 2″ & 4″ |
Max. Temperature | 70°C |
Final Pressure Drop | 1.00″ wg |
Flammability | UL 900 / ULC S III Classified |
Mounting Options | Front and side access frames and housing available |
Features & Benefits:
- Robust, rigid construction extends filter service life
- Efficient, easy-to-handle pre-filtration of exhaust air
- Integral pleat separators on 4″ filters add stabilization
- Deeper pleats = longer life, fewer change-outs
- Media bonded to metal grid on air-exit side — prevents fluttering, maintains pleat uniformity
- Heavy-duty, moisture-resistant, die-cut frame — won’t warp, crack, or distort
- Low initial pressure drop
- Extends service life of secondary expensive filters when used as pre-filter
- Diagonal front/back retainers integral to frame
- Usable without modification in side-access housing or built-up filter banks
- Radial V-Design pleating maximizes media utilization
- Media pack bonded to frame — prevents air bypass
Applications: Same list as above (Industrial, Commercial, Hospital, Biomedical, Residential, Universities, Laboratories, Pharmaceutical, Restaurant, Food Processing Unit, Biotechnology)
Technical Parameters:
Model | Width | Height | Depth | CFM@300fpm | CFM@500fpm | CMH@1.52m/s | CMH@2.54m/s | Resist.@1.52m/s | Resist.@2.54m/s |
MVDPF-12x12x4-G4 | 11.30 | 11.30 | 3.70 | 300 | 500 | 510 | 850 | 0.14 | 0.25 |
MVDPF-12x24x4-G4 | 11.30 | 23.30 | 3.70 | 600 | 1000 | 1020 | 1700 | 0.14 | 0.25 |
MVDPF-20x24x4-G4 | 19.30 | 23.30 | 3.70 | 1000 | 1650 | 1700 | 2805 | 0.14 | 0.25 |
MVDPF-24x24x4-G4 | 23.30 | 23.30 | 3.70 | 1200 | 2000 | 2040 | 3400 | 0.14 | 0.25 |
MVDPF-12x12x2-G4 | 11.30 | 11.30 | 1.73 | 300 | 500 | 510 | 850 | 0.16 | 0.29 |
MVDPF-12x24x2-G4 | 11.30 | 23.30 | 1.73 | 600 | 1000 | 1020 | 1700 | 0.16 | 0.29 |
MVDPF-20x24x2-G4 | 19.30 | 23.30 | 1.73 | 1000 | 1650 | 1700 | 2805 | 0.16 | 0.29 |
MVDPF-24x24x2-G4 | 23.30 | 23.30 | 1.73 | 1200 | 2000 | 2040 | 3400 | 0.16 | 0.29 |
MVDPF-12x12x1-G4 | 11.30 | 11.30 | 0.86 | 300 | * | 510 | * | 0.21 | * |
MVDPF-12x24x1-G4 | 11.30 | 23.30 | 0.86 | 600 | * | 1020 | * | 0.21 | * |
MVDPF-20x24x1-G4 | 19.30 | 23.30 | 0.86 | 1000 | * | 1700 | * | 0.21 | * |
MVDPF-24x24x1-G4 | 23.30 | 23.30 | 0.86 | 1200 | * | 2040 | * | 0.21 | * |
Model Code: MVDPF-24x24x1-G4 → MV: Marvel Ventilation | DPF: Disposable Pleated Filter | 24x24x1: W×H×D | G4: Grade
- DRIPAC SYNTHETIC MEDIA BAG FILTERS

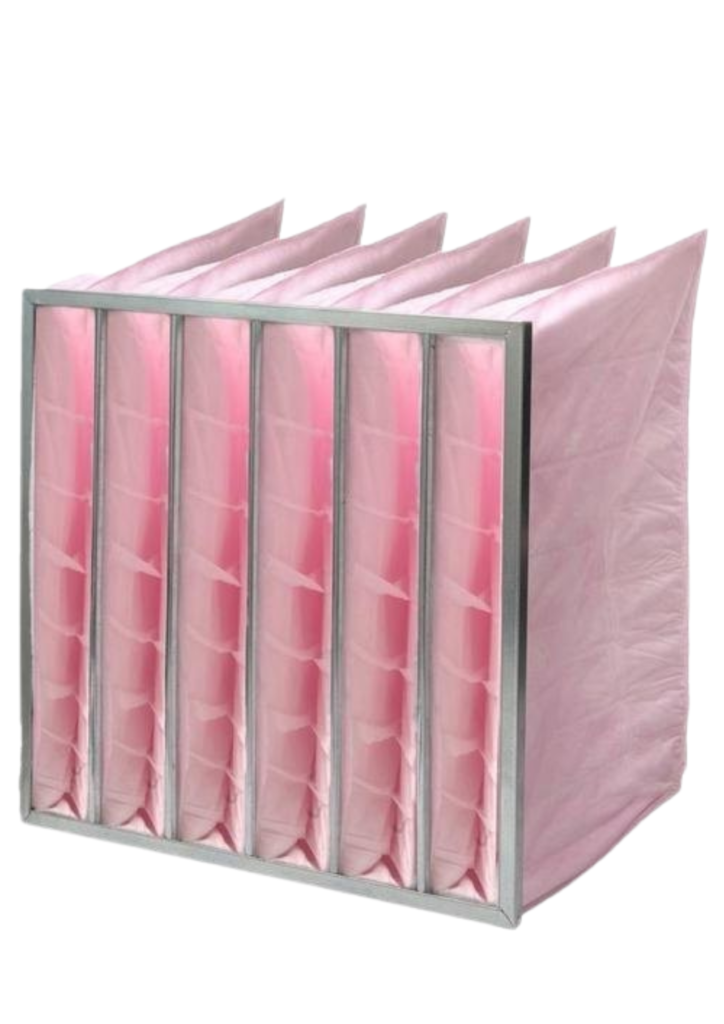

DriPac Synthetic Media Bag Filters – MDPBF
Parameter | Detail |
Type of Filter | Extended Surface Multi Pocket Bag Filter |
Filter Grade (EN 779) | M5, M6, F7, F8, F9 |
Filter Grade (ASHRAE 52.2) | MERV 10, 11, 13, 14, 15 |
Filter Media | Synthetic |
Dimension | Per EN 15805 |
Frame | GI / SS / Al / Polystyrene Plastic (20/25 mm header configs) |
Filter Depth | 1″ & 2″ |
Max. Temp/Humidity | 80°C / 100% |
Initial Pressure Drop | 1.00″ wg |
Maximum Pressure Drop | 1.80″ wg |
Flammability | UL 900 Classified |
Mounting Options | Front and side access frames and housing available |
Features & Benefits:
- High-dense melt-blown media with high dust-holding capacity
- High-loft, multi-layered media — non-shedding, water-resistant, high performance
- Robust metal header frame for quick, easy installation
- Available with anti-microbial treatment
- Ultrasonically welded pockets — no crowding or leakage
- Tapered bag design for optimum performance
- Flawless performance even under temporary overload
Applications: Same standard list.
Technical Parameters (selected — Model | W×H×Depth(pockets) | Pocket count | Airflow CFM | Resistance at F9/F8/F7 grades | Media Area sq.m.):
Model | Width | Height | Depth | Pockets | Airflow Low/Med/High | Media Area (Sq.m) |
MVDPF-24x24x36-(F7/F8/F9)-10 | 23.30 | 23.30 | 36 | 10 | 2000/2500/3000 | 10.85 |
MVDPF-24x24x30-(F7/F8/F9)-10 | 23.30 | 23.30 | 30 | 10 | 2000/2400/2800 | 9.10 |
MVDPF-24x24x30-(F7/F8/F9)-8 | 23.30 | 23.30 | 30 | 8 | 1800/2000/2200 | 7.21 |
MVDPF-24x24x26-(F7/F8/F9)-10 | 23.30 | 23.30 | 26 | 10 | 1800/2000/2400 | 7.81 |
MVDPF-24x24x24-(F7/F8/F9)-10 | 23.30 | 23.30 | 24 | 10 | 1750/2000/2400 | 7.20 |
MVDPF-24x24x24-(F7/F8/F9)-8 | 23.30 | 23.30 | 24 | 8 | 1400/2000/2400 | 5.70 |
MVDPF-24x24x24-(F7/F8/F9)-6 | 23.30 | 23.30 | 24 | 6 | 1400/1800/2000 | 4.30 |
MVDPF-24x24x22-(F7/F8/F9)-10 | 23.30 | 23.30 | 22 | 10 | 1750/2000/2250 | 6.52 |
MVDPF-24x24x22-(F7/F8/F9)-8 | 23.30 | 23.30 | 22 | 8 | 1500/1750/2000 | 5.20 |
MVDPF-24x24x22-(F7/F8/F9)-6 | 23.30 | 23.30 | 22 | 6 | 1500/1750/2000 | 3.90 |
MVDPF-12x24x22-(F7/F8/F9)-3 | 11.30 | 23.30 | 22 | 3 | 750/875/1000 | 2.00 |
MVDPF-24x24x21-(F7/F8/F9)-8 | 23.30 | 23.30 | 21 | 8 | 1500/1750/2000 | 5.10 |
MVDPF-24x24x21-(F7/F8/F9)-6 | 23.30 | 23.30 | 21 | 6 | 1500/1750/2000 | 3.80 |
MVDPF-24x24x20-(F7/F8/F9)-10 | 23.30 | 23.30 | 20 | 10 | 1500/2000/2200 | 6.00 |
MVDPF-24x24x20-(F7/F8/F9)-8 | 23.30 | 23.30 | 20 | 8 | 1500/1750/2000 | 4.80 |
MVDPF-24x24x20-(F7/F8/F9)-6 | 23.30 | 23.30 | 20 | 6 | 1500/1750/2000 | 3.60 |
MVDPF-12x24x20-(F7/F8/F9)-3 | 11.30 | 23.30 | 20 | 3 | 750/875/1000 | 1.90 |
MVDPF-24x24x18-(F7/F8/F9)-8 | 23.30 | 23.30 | 18 | 8 | 1500/1750/2000 | 4.33 |
MVDPF-24x24x18-(F7/F8/F9)-6 | 23.30 | 23.30 | 18 | 6 | 1500/1750/2000 | 3.25 |
MVDPF-24x24x15-(F7/F8/F9)-10 | 23.30 | 23.30 | 15 | 10 | 1350/1500/2000 | 4.52 |
MVDPF-24x24x15-(F7/F8/F9)-8 | 23.30 | 23.30 | 15 | 8 | 1250/1500/2000 | 3.60 |
(Pressure-drop values for F7/F8/F9 grades at low/medium/high airflow are listed against each model in the original table if needed in detail.)
Model Code: MDPBF-24x24x21-(M5/M6/F7/F8/F9)-8 → M: Marvel Ventilation | DPBF: DriPac Bag Filter | 24x24x21: W×H×D | Grade | 8: Pockets
- ASHRAE CELL FILTERS

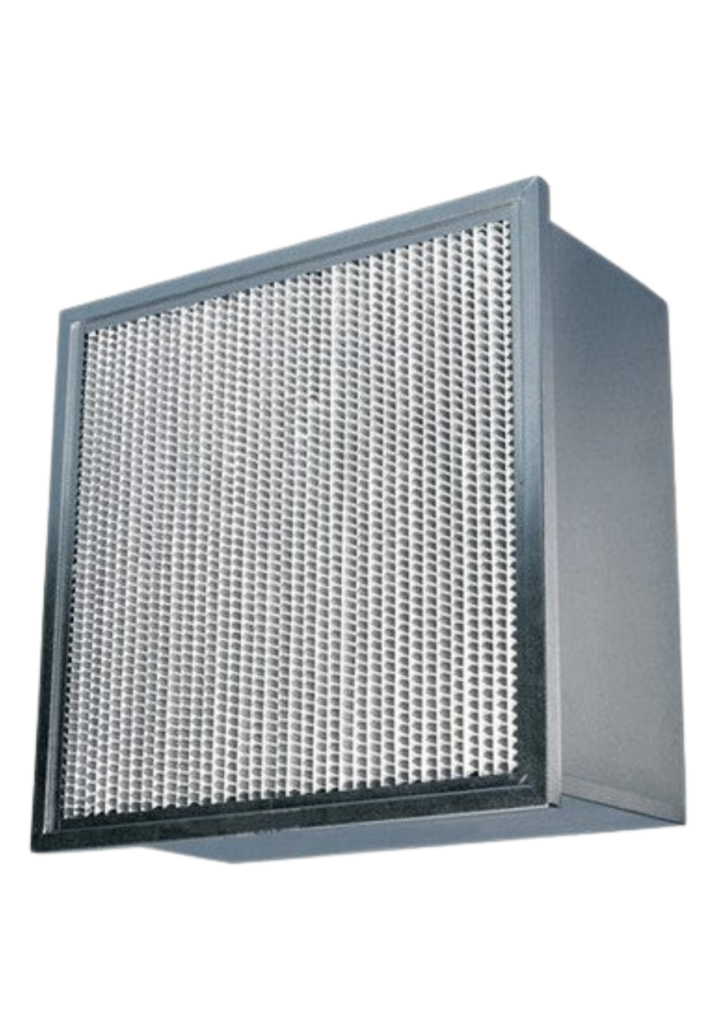

ASHRAE Cell Filters – MACF
Parameter | Detail |
Type of Filter | High Efficiency Extended Surface Deep Pleated Filter |
Filter Grade (EN 779) | M6, F7, F8 |
Filter Grade (ASHRAE 52.2) | MERV 11, 13, 14 |
Filter Media | Micro Fine Glass Fiber |
Media Holder | Hemmed-edge Aluminum corrugated holding separator |
Frame | GI / SS / Al / MDF |
Filter Depth | 6″, 12″ |
Max. Temperature | 80°C |
Final Pressure Drop | 1.40″ wg (recommended) |
Features & Benefits:
- Suited for Variable Air Volume (VAV) systems and extreme conditions
- Higher durability = fewer change-outs than pocket/rigid cell filters
- Micro glass fine fibers maintain efficiency throughout filter life
- Best for package systems, air handlers, split systems, filter banks, free-standing units
- Seamless single-piece PU gasket for leak-free seal
- Robust, compact — replaces traditional pocket-style filters
- Rigid format prevents dust unloading from media oscillation
- Frame options: single header, double header, or box style
- Works in diverse conditions including 100% humidity and turbulent/VAV systems
Applications: Standard list as above.
Technical Parameters (selected):
Model | Width | Height | Depth | Grade (EN/ASHRAE) | CFM | CMH | Initial Pressure Drop (Header/Box) | Media Area sq.ft (Header/Box) |
MACF-12x24x12-F8 | 11.30 | 23.30 | 11.50 | F8/MERV14 | 1000 | 1700 | 0.60/0.56 | 57/66 |
MACF-12x24x12-F8 | 12.00 | 24.00 | 11.50 | F8/MERV14 | 1000 | 1700 | 0.58/0.54 | 62/71 |
MACF-24x12x12-F8 | 23.30 | 11.30 | 11.50 | F8/MERV14 | 1000 | 1700 | 0.60/0.56 | 59/63 |
MACF-20x24x12-F8 | 19.30 | 23.30 | 11.50 | F8/MERV14 | 1650 | 2800 | 0.60/0.56 | 100/108 |
MACF-24x24x12-F8 | 23.30 | 23.30 | 11.50 | F8/MERV14 | 2000 | 3400 | 0.60/0.56 | 125/134 |
MACF-24x24x12-F8 | 24.00 | 24.00 | 11.50 | F8/MERV14 | 2000 | 3400 | 0.58/0.54 | 132/141 |
MACF-12x24x6-F8 | 11.30 | 23.30 | 5.90 | F8/MERV14 | 500 | 850 | 0.35/0.33 | 29/33 |
MACF-24x24x6-F8 | 23.30 | 23.30 | 5.90 | F8/MERV14 | 1000 | 1700 | 0.35/0.33 | 63/67 |
MACF-12x24x12-F7 | 11.30 | 23.30 | 11.50 | F7/MERV13 | 1000 | 1700 | 0.52/0.48 | 57/66 |
MACF-12x24x12-F7 | 12.00 | 24.00 | 11.50 | F7/MERV13 | 1000 | 1700 | 0.51/0.47 | 62/71 |
MACF-24x12x12-F7 | 23.30 | 11.30 | 11.50 | F7/MERV13 | 1000 | 1700 | 0.52/0.48 | 59/63 |
MACF-20x24x12-F7 | 19.30 | 23.30 | 11.50 | F7/MERV13 | 1650 | 2800 | 0.52/0.48 | 100/108 |
MACF-24x24x12-F7 | 23.30 | 23.30 | 11.50 | F7/MERV13 | 2000 | 3400 | 0.52/0.48 | 125/134 |
MACF-24x24x12-F7 | 24.00 | 24.00 | 11.50 | F7/MERV13 | 2000 | 3400 | 0.51/0.47 | 132/141 |
MACF-12x24x6-F7 | 11.30 | 23.30 | 5.90 | F7/MERV13 | 500 | 850 | 0.32/0.30 | 29/33 |
MACF-24x24x6-F7 | 23.30 | 23.30 | 5.90 | F7/MERV13 | 1000 | 1700 | 0.32/0.30 | 63/67 |
MACF-12x24x12-M6 | 11.30 | 23.30 | 11.50 | M6/MERV11 | 1000 | 1700 | 0.40/0.38 | 57/66 |
MACF-12x24x12-M6 | 12.00 | 24.00 | 11.50 | M6/MERV11 | 1000 | 1700 | 0.39/0.37 | 62/71 |
MACF-24x12x12-M6 | 23.30 | 11.30 | 11.50 | M6/MERV11 | 1000 | 1700 | 0.40/0.38 | 59/63 |
MACF-20x24x12-M6 | 19.30 | 23.30 | 11.50 | M6/MERV11 | 1650 | 2800 | 0.40/0.38 | 100/108 |
MACF-24x24x12-M6 | 23.30 | 23.30 | 11.50 | M6/MERV11 | 2000 | 3400 | 0.40/0.38 | 125/134 |
MACF-24x24x12-M6 | 24.00 | 24.00 | 11.50 | M6/MERV11 | 2000 | 3400 | 0.39/0.37 | 132/141 |
MACF-12x24x6-M6 | 11.30 | 23.30 | 5.90 | M6/MERV11 | 500 | 850 | 0.16/0.15 | 29/33 |
MACF-24x24x6-M6 | 23.30 | 23.30 | 5.90 | M6/MERV11 | 1000 | 1700 | 0.16/0.15 | 63/67 |
Model Code: MACF-24x24x12-(HDR/BX)-F7 → M: Marvel Ventilation | ACF: ASHRAE Cell Filter | 24x24x12: W×H×D | HR/WHR: Header/Without Header | F7: Grade
- COMPACT ACTIVATED CARBON FILTERS
Compact Activated Carbon Filters – MCACF
Parameter | Detail |
Type of Filter | Compact Activated Carbon – Gas Phase Filter |
Filter Grade (EN 779) | M5, F7, F9 |
Filter Grade (ASHRAE 52.2) | MERV 10, 13, 15 |
Filter Media | Micro-granulate compact activated carbon particles embedded in dual-layer synthetic media |
Dimension | Per EN 15805 |
Frame | ABS Plastic |
Filter Depth | 12″ |
Max. Temp/Humidity | 55°C / 70% |
Maximum Pressure Drop | 1.50″ wg |
Flammability | UL 900 Classified |
Mounting Options | 20 mm thick header frame |
Features & Benefits:
- Micro-granulate adsorbent carbon embedded between two non-woven synthetic layers, mini-pleated
- Corrosion-free, non-metal (ABS plastic) frame
- 25 mm / 20 mm peripheral header for easy side/front installation
- Uses 60% CTC activated carbon micro granules
- Densely packed granules = large surface area, high adsorption speed
- Removes VOCs, vehicle exhaust, sulphur compounds, NOx, ammonia, ozone, and other gases
- Energy-efficient mini-pleated design — large surface area, low pressure drop
- Sturdy header and cell sides resist shipping/handling damage
- Available in standard sizes and M5/F7/F9 grades
- Ideal when both compact filtration and molecular (gas-phase) filtration are needed in one unit
Applications: Standard list as above.
Technical Parameters:
Model | Width | Height | Depth | Grade (EN/ASHRAE) | Carbon Weight (Kg) | CFM | CMH | Initial Pressure Drop | Media Area (sq.ft) |
MCACF-24x12x12-F9 | 23.30 | 11.30 | 11.50 | F9/MERV15 | 2.40 | 1000 | 1700 | 0.65 | 33 |
MCACF-24x20x12-F9 | 23.30 | 19.30 | 11.50 | F9/MERV15 | 4 | 1650 | 2800 | 0.65 | 55 |
MCACF-24x24x12-F9 | 23.30 | 23.30 | 11.50 | F9/MERV15 | 4.80 | 2000 | 3400 | 0.65 | 66 |
MCACF-24x12x12-F7 | 23.30 | 11.30 | 11.50 | F7/MERV13 | 2.40 | 1000 | 1700 | 0.60 | 33 |
MCACF-24x20x12-F7 | 23.30 | 19.30 | 11.50 | F7/MERV13 | 4 | 1650 | 2800 | 0.60 | 55 |
MCACF-24x24x12-F7 | 23.30 | 23.30 | 11.50 | F7/MERV13 | 4.80 | 2000 | 3400 | 0.60 | 66 |
MCACF-24x12x12-M5/F5 | 23.30 | 11.30 | 11.50 | M5/F5/MERV10 | 2.40 | 1000 | 1700 | 0.52 | 33 |
MCACF-24x20x12-M5/F5 | 23.30 | 19.30 | 11.50 | M5/F5/MERV10 | 4 | 1650 | 2800 | 0.52 | 55 |
MCACF-24x24x12-M5/F5 | 23.30 | 23.30 | 11.50 | M5/F5/MERV10 | 4.80 | 2000 | 3400 | 0.52 | 66 |
Model Code: MCACF-24x24x12-F7 → M: Marvel Ventilation | CACF: Compact Activated Carbon Filter | 24x24x12: W×H×D | F7: Grade
General Note (applies across all filter types): Product images are illustrative; final product may differ. Contact the technical/sales department for precise details. MVL reserves the right to make technical modifications without prior notice. Non-standard sizes available on request — contact the factory.
